PROFESSIONAL TRICYCLE MANUFACTURER SINCE 1997
 |
| Place of Origin: | Henan, China |
| Certification: | CCC , ISO9001:2000 |
| Minimum Order Quantity: | 9 Units |
|---|---|
| Price: | $1,550.00 / Unit |
| Use For: | Passenger | Driving Type: | Electric |
|---|---|---|---|
| Body Type: | Closed | Power: | > 800W |
| Voltage: | 60V | Size: | L2700 * W1300 * H1800mm, 2700 * 1300 * 1800mm |
| Controller: | 60v 1000W 75Ah 24Tube | Motor: | 60v 1000w L Motor |
| Tire Size: | 400-10 Vacuum Tyre | Weight(battery Free): | 470kgs |
| Brake Mode: | Front Hand Brake, Rear Disc | Damping: | Front:33 Hydraulic Shock Absorption, |
| Charger Specification: | 60 V/ 20 A | Charging Time: | 4-6h |
| Name: | Xiaofeilong | Selling Units: | Single Item |
| Single Package Size : | 270X130X180 Cm | Single Gross Weight: | 470.000 Kg |
| Package Type: | It Is Fully Assembled Packaged. It Loads 9 Pcs By Vertically Loading Way In A Container. Or It Loads 4 Pcs By Flatwise In A Container. | ||
| High Light: | Solar Motorized Passenger Tricycle,1000w Motorized Passenger Tricycle,470kg Electric Scooter Tricycle |
||
|

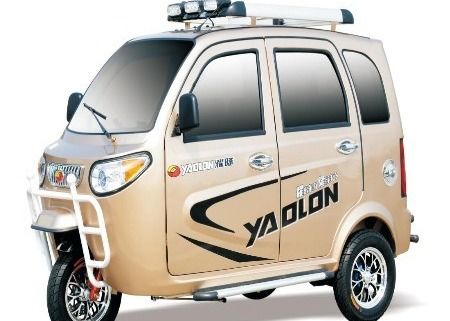

Item name
|
Xiao fei long
|
|
Motor
|
60v 1000w differential motor
|
|
Controller
|
60v 1000W 75Ah 24Tube
|
|
Vehicle dimensions
|
L2700 * W1300 * H1800mm
|
|
Weight(battery free)
|
470 kg
|
|
Tire size
|
front/rear 400-10 vacuum tyre
|
|
rim type
|
Aluminum rims
|
|
brake mode
|
Front hand brake, rear disc brake
|
|
Damping mode
|
Front:33 hydraulic shock absorption,
Rear:independent cantilever
|
|
Rated loading
|
600 kg
|
|
top speed
|
50 km/h
|
|
Lithium iron phosphate battery
|
60v/100Ah
|
|
Endurance mileage
|
80-100km/per charge
|
|
Capacity
|
3passengers+1driver
|
|
Wheel tread
|
970 mm
|
|
Wheelbase
|
1680 mm
|
|
charger specification
|
60 V/ 20 A
|
|
Charging time
|
4-6h
|
Motor: 60v 1000w differential motor
Controller:60v 1000W 75Ah 24Tube
Vehicle dimensions: L2700 * W1300 * H1800mm
Tire size:front/rear 400-10 vacuum tyre
brake mode:Front hand brake, rear disc brake
Damping mode:Front:33 hydraulic shock absorption, Rear axle:independent cantilever
Rated loading: 600KGS
Top speed: 50KM/H
Battery: Lithium iron phosphate battery 60v/100Ah
Endurance mileage:80-100km/per charge
Capacity:3passengers+1driver
Machine Parts
Name: Luggage rack
Main Features:stainless steel frame,plastic box
Main Features
Name:Electric fan
Name:Roof window
Original: Germany
